"LS-5130S-28S-EI-H1-GL"จำหน่าย H3C "LS-5130S-28S-EI-H1-GL" ราคาพร้อมติดตั้ง !!ฟรี
SKU : LS-5130S-28S-EI-H1-GL

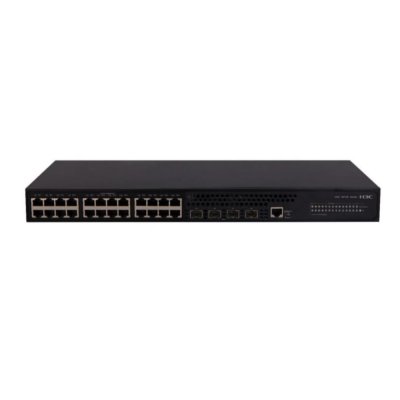

LS-5130S-28S-EI-H1-GL: H3C S5130S-28S-EI L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 4*1G/10G BASE-X SFP Plus Ports, (AC)
฿57,400
฿0
฿57,400
ราคาสมาชิก
฿0
ราคาสมาชิก
฿0
จำนวน
รายละเอียดสินค้า
H3C LS-5130S-28S-EI-H1-GL รุ่น "LS-5130S-28S-EI-H1-GL"
Port LAN: 24*10/100/1000BASE-T Ports ,(AC)
Fiber Port: 4*1G/10G BASE-X SFP Plus Ports
Port Switching Capacity: 128Gbps
Forwarding Capacity : 96Mpps
Box Switching Capacity: 336Gbps
CPU : 1 Core, 800MHz
Maximum Stacking Bandwidth : 80Gbps
Maximum Stacking num : 9
VLAN
- VLAN ID range 0 to 4095(Total 4096, 0 and 4095 are reserved for the system ) Access/Trunk/Hybrid VLAN
- port-based VLAN
- MAC-based VLAN
- IP subnet-based VLAN protocol-based VLAN IEEE 802.1P(CoS priority) Private VLAN
- Voice VLAN
- Guest VLAN
- MVRP (Multiple VLAN Registration Protocol) (compliance with GVRP)
Ethernet link aggregation
- static aggregation
- dynamic aggregation
- GE/10GE port aggregation
- LACP (Link Aggregation Control Protocol) S-MLAG (Simple multichassis link aggregation)
Layer 3 routing
- Static routing, RIP, OSPF
- IPv6 static routing, RIPng, OSPFv3
- IPv4/IPv6 dual stack
- Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6
Performance Specification
- MAC address entries: 16K
- VLAN table: 4096 (VLAN IDs 0 and 4095 are reserved)
- Active VLAN: 4094
- VLAN interface: 32*
- IPv4 routing entries: 1024
- IPv4 ARP entries: 1024
- IPv4 ACL entries: 512
- IPv4 multicast L2 entries: 1000
- IPv6 unicast routing entries: 240
- QOS forward queues: 8
- IPv6 ACL entries: 512
- IPv6 ND entries : 240
- Jumbo frame length: 10240
- MAX num in one link group: 8
- Link group num: 124
Port LAN: 24*10/100/1000BASE-T Ports ,(AC)
Fiber Port: 4*1G/10G BASE-X SFP Plus Ports
Port Switching Capacity: 128Gbps
Forwarding Capacity : 96Mpps
Box Switching Capacity: 336Gbps
CPU : 1 Core, 800MHz
Maximum Stacking Bandwidth : 80Gbps
Maximum Stacking num : 9
VLAN
- VLAN ID range 0 to 4095(Total 4096, 0 and 4095 are reserved for the system ) Access/Trunk/Hybrid VLAN
- port-based VLAN
- MAC-based VLAN
- IP subnet-based VLAN protocol-based VLAN IEEE 802.1P(CoS priority) Private VLAN
- Voice VLAN
- Guest VLAN
- MVRP (Multiple VLAN Registration Protocol) (compliance with GVRP)
Ethernet link aggregation
- static aggregation
- dynamic aggregation
- GE/10GE port aggregation
- LACP (Link Aggregation Control Protocol) S-MLAG (Simple multichassis link aggregation)
Layer 3 routing
- Static routing, RIP, OSPF
- IPv6 static routing, RIPng, OSPFv3
- IPv4/IPv6 dual stack
- Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6
Performance Specification
- MAC address entries: 16K
- VLAN table: 4096 (VLAN IDs 0 and 4095 are reserved)
- Active VLAN: 4094
- VLAN interface: 32*
- IPv4 routing entries: 1024
- IPv4 ARP entries: 1024
- IPv4 ACL entries: 512
- IPv4 multicast L2 entries: 1000
- IPv6 unicast routing entries: 240
- QOS forward queues: 8
- IPv6 ACL entries: 512
- IPv6 ND entries : 240
- Jumbo frame length: 10240
- MAX num in one link group: 8
- Link group num: 124
