"LS-5170-54S-EI-GL"จำหน่าย H3C "LS-5170-54S-EI-GL" ราคาพร้อมติดตั้ง !!ฟรี

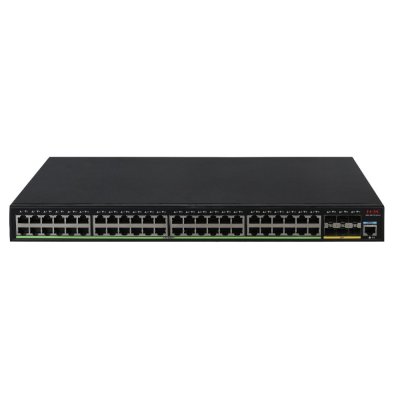

H3C S5170S-EI Series รุ่น "LS-5170-54S-EI-GL"
Port LAN:      48*10/100/1000Base-T Port PoE+
Fiber Port:    6*1/10Gbs SFP+ Port
Port Switching Capacity :  216Gbps
Forwarding Capacity :  161Mpps
CPU : 1GHz, 2Cores
Maximum Stacking Bandwidth : 80Gbps
Maximum Stacking num : 9


VLAN
                - VLAN ID range 0 to 4095(Total 4096, 0 and 4095 are reserved for the system ) Access/Trunk/Hybrid VLAN
                - port-based VLAN
                - MAC-based VLAN
                - IP subnet-based VLAN protocol-based VLAN IEEE 802.1P(CoS priority) Private VLAN
                - Voice VLAN
                - Guest VLAN
                - MVRP (Multiple VLAN Registration Protocol) (compliance with GVRP)

Ethernet link aggregation
                - static aggregation
                - dynamic aggregation
                - GE/10GE port aggregation
                - LACP (Link Aggregation Control Protocol) S-MLAG (Simple multichassis link aggregation)

Layer 3 routing
                - Static routing, RIP, OSPF
                - IPv6 static routing, RIPng, OSPFv3
                - IPv4/IPv6 dual stack
                - Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6

Performance Specification
                - MAC address entries: 16K
                - VLAN table: 4096 (VLAN IDs 0 and 4095 are reserved)
                - Active VLAN: 4094
                - VLAN interface: 32*
                - IPv4 routing entries: 1024
                - IPv4 ARP entries: 1024
                - IPv4 ACL entries: 512
                - IPv4 multicast L2 entries: 1000
                - IPv6 unicast routing entries: 240
                - QOS forward queues: 8
                - IPv6 ACL entries: 512
                - IPv6 ND entries : 240
                - Jumbo frame length: 10240
                - MAX num in one link group: 8
                - Link group num: 126
