"LS-5130S-20P-PWR-EI-GL"จำหน่าย H3C "LS-5130S-20P-PWR-EI-GL" ราคาพร้อมติดตั้ง !!ฟรี

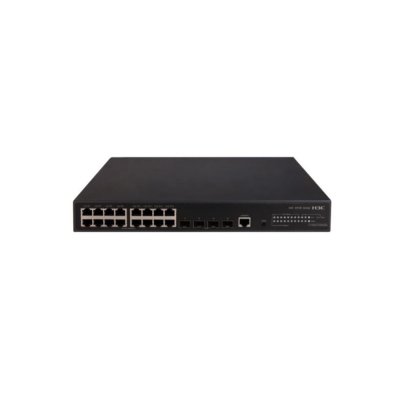

H3C S5130S-EI Series รุ่น "LS-5130S-20P-PWR-EI-GL"
Port LAN:   16*10/100/1000BASE-T PoE+ Ports(AC 185W) ),(AC)
Fiber Port:  4*1000BASE-X SFP Ports
Port Switching Capacity : 56Gbps
Forwarding Capacity :  42Mpps

Box Switching Capacity: 336Gbps

CPU : 1 Core, 800MHz

Maximum Stacking Bandwidth : 16Gbps

Maximum Stacking num : 9

PoE Power Capacity: 370W

                - 15.4W (802.3af): 24

                - 30W (802.3at): 12


VLAN
                - VLAN ID range 0 to 4095(Total 4096, 0 and 4095 are reserved for the system ) Access/Trunk/Hybrid VLAN
                - port-based VLAN
                - MAC-based VLAN
                - IP subnet-based VLAN protocol-based VLAN IEEE 802.1P(CoS priority) Private VLAN
                - Voice VLAN
                - Guest VLAN
                - MVRP (Multiple VLAN Registration Protocol) (compliance with GVRP)

Ethernet link aggregation

                - static aggregation
                - dynamic aggregation
                - GE/10GE port aggregation
                - LACP (Link Aggregation Control Protocol) S-MLAG (Simple multichassis link aggregation)

Layer 3 routing
                - Static routing, RIP, OSPF
                - IPv6 static routing, RIPng, OSPFv3
                - IPv4/IPv6 dual stack
                - Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6

Performance Specification

                - MAC address entries: 16K

                - VLAN table: 4096 (VLAN IDs 0 and 4095 are reserved)

                - Active VLAN: 4094

                - VLAN interface: 32*

                - IPv4 routing entries: 1024

                - IPv4 ARP entries: 1024

                - IPv4 ACL entries: 512

                - IPv4 multicast L2 entries: 1000

                - IPv6 unicast routing entries: 240

                - QOS forward queues: 8

                - IPv6 ACL entries: 512

                - IPv6 ND entries : 240

                - Jumbo frame length: 10240

                - MAX num in one link group: 8

                - Link group num: 124
